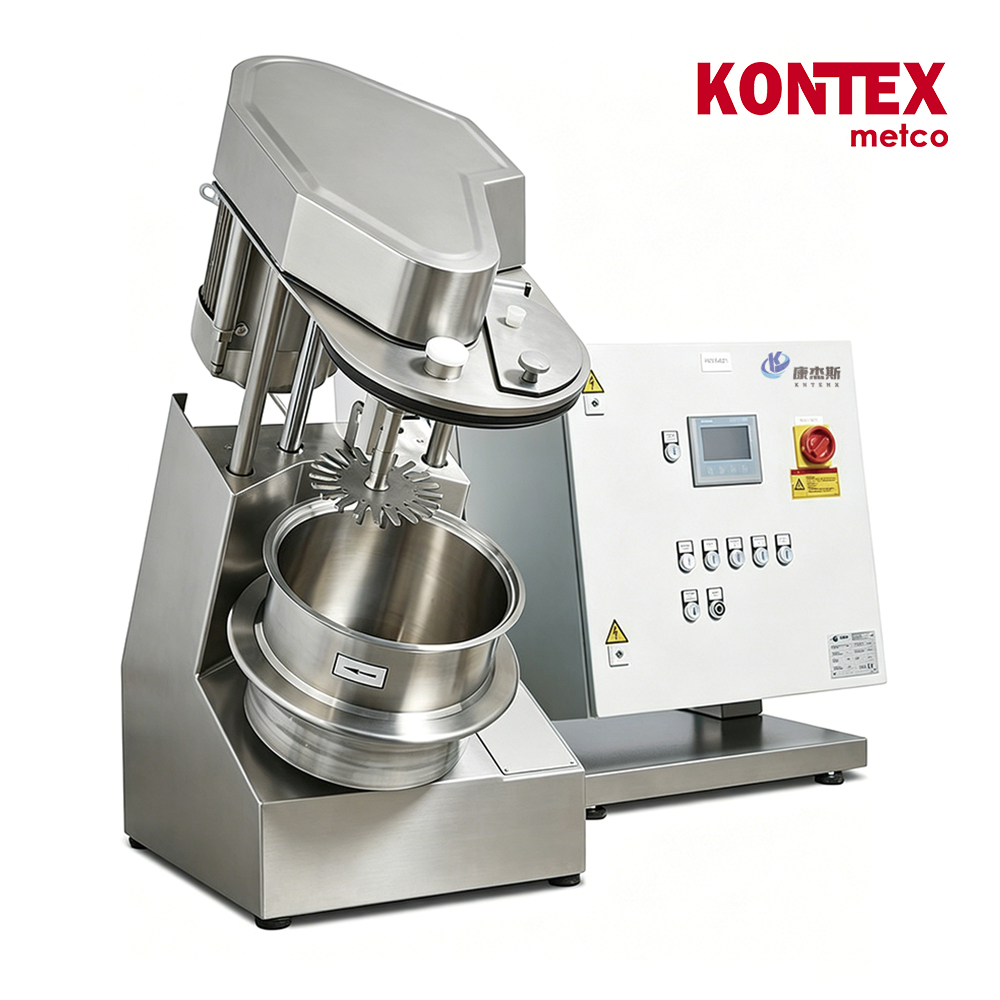

Kontex intensive Mixer Granulator: Industry Applications, Technical Advantages, and Hygienic-Grade Stainless Steel Solutions

Kontex has established itself as a trusted name in the field of mixing and granulation technology. With decades of engineering expertise, the Kontex mixer granulator combines robust mixing performance with advanced granulation capabilities, serving a wide range of industries that demand homogeneity, particle size control, and operational reliability.

Industry Applications

1. Pharmaceutical Industry
In pharmaceutical manufacturing, consistency and contamination control are critical. Kontex mixer granulators are widely used for wet granulation of active pharmaceutical ingredients (APIs) and excipients. The gentle but thorough mixing action ensures uniform distribution of binders, while the controllable granulation process produces free-flowing granules with excellent compressibility for tablet pressing.

2. Food and Nutraceuticals
From instant beverage powders to nutritional supplement granules, Kontex equipment handles heat-sensitive and shear-sensitive ingredients with care. The closed mixing system minimises dust generation and cross-contamination, making it ideal for processing spices, flavourings, baby food, and protein powders.

3. Chemicals and Specialties
Kontex mixer granulators efficiently process fine chemicals, catalysts, pigments, and detergents. The machine’s ability to handle both dry powder premixing and liquid addition in a single vessel reduces material handling and processing time, improving productivity for batch chemical operations.

4. Battery Materials
With the rapid growth of the electric vehicle industry, Kontex has successfully applied its mixer granulator technology to lithium-ion battery precursor materials such as lithium cobalt oxide, lithium iron phosphate, and graphite blends. The equipment provides intense shear and uniform liquid distribution, essential for consistent electrode material properties.

5. Fertilizers and Agrochemicals
For compound fertilisers, trace element granules, and pesticide wettable powders, Kontex mixer granulators offer excellent densification and spheronisation, producing durable, slow-release granules with narrow particle size distribution.

Technical Advantages

1. Dual-Function Mixing and Granulation in One Unit
Unlike conventional equipment that requires separate mixing and granulation steps, the Kontex mixer granulator performs both operations in a single closed vessel. This integrated design significantly reduces process time, material loss, and floor space requirements.

2. High-Intensity Three-Dimensional Mixing Action
The patented rotor and chopper arrangement creates a complex flow pattern combining convective, shear, and diffusive mixing. This ensures that even minor components (e.g., binders, active ingredients) are distributed within seconds, achieving a coefficient of variation (CV) of less than 5% – far superior to traditional ribbon or paddle mixers.

3. Precise Granulation Control
Granule size and density are easily controlled by adjusting rotor speed, chopper speed, binder addition rate, and processing time. The result is a narrow granule size distribution (typically 0.2–2.0 mm) with high sphericity, which improves downstream flowability, dust reduction, and tableting or packaging performance.

4. Scalable and Reproducible Process
Kontex equipment is designed with geometric similarity across different capacities (from laboratory units of 5 litres to production units over 2000 litres). This allows seamless scale‑up of granulation recipes with reproducible granule properties, significantly reducing development time and risk.

5. Energy Efficiency and Low Maintenance
The direct-drive rotor system and optimised chopper design reduce parasitic energy losses. All wear parts (paddles, lining plates, scraper blades) are made from abrasion-resistant materials and are easily accessible for inspection or replacement without dismantling the main shaft.

Pure Stainless Steel Equipment for Hygienic Standards

For industries with strict cleanliness and regulatory requirements – such as pharmaceuticals, food processing, and biotechnology – Kontex offers a fully hygienic version of its mixer granulator constructed entirely from high-grade stainless steel.

All product-contact surfaces are made from AISI 316L (or 1.4404) stainless steel, which provides exceptional resistance to corrosion, acids, alkalis, and cleaning agents. The absence of carbon steel components eliminates any risk of rust or metallic contamination in the final product.

The equipment meets cGMP (current Good Manufacturing Practice) and FDA guidelines, featuring:

• Radiussed internal corners and fully welded, polished seams (Ra ≤ 0.4 µm) to eliminate dead zones where material could accumulate.

• Sanitary mechanical seals and easy‑clean spray balls for automated CIP (Clean‑in‑Place) procedures.

• Electropolished surfaces that prevent bacterial adhesion and facilitate visual inspection.

• No crevices or threads exposed to the product zone – all fasteners are either covered or designed as flush-mounted.

In addition, the pure stainless steel design extends to auxiliary components: the discharge valve, sampling ports, and even the outer cladding are made of non‑corroding stainless steel, ensuring complete compatibility with high‑humidity or wash‑down environments.

This hygienic configuration not only simplifies validation for regulated industries but also minimises downtime between product changeovers, as a thorough cleaning can be completed in a fraction of the time required for traditional painted or carbon steel machines.

Conclusion

The Kontex mixer granulator bridges the gap between high‑intensity mixing and precise wet granulation, delivering proven benefits across pharmaceuticals, foods, chemicals, battery materials, and agrochemicals. With its robust engineering, process scalability, and an optional pure stainless steel, hygienic‑grade design, Kontex provides a future‑proof solution for manufacturers who demand both performance and compliance with the highest cleanliness standards.
